Robotics lab · Level 3 of 8
Teach and run
Level 3 of 8 in the Robotics lab: a free robot programming exercise at Foundation level, which takes about 30 minutes. Teach home, pick and place points by jogging, build a waypoint table, run it step by step in T1, then in AUTO.
Free · no download · about 30 minutes. Your work is saved on this device. Updated 18 Oct 2026.
The brief
- Client
- Marlowe Electronics
- Site

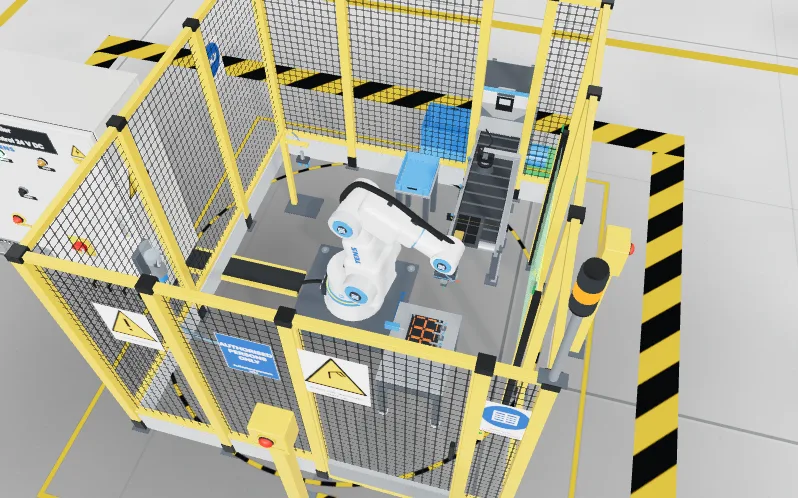

- Board handling cell
- Work order
- WO-RB-103
- Task code
- ROB-03
- Difficulty
- Foundation
- Type of work
- Teaching
Teach home, pick and place points by jogging, build a waypoint table, run it step by step in T1, then in AUTO.
Skills you practise
- Teaching points
- Waypoint table
- Step-by-step test
- First AUTO run
What the test checks
The acceptance test marks the skills this level practises.
- Teaching points
- Waypoint table
- Step-by-step test
- First AUTO run
In this lab
- Teach pendant: jog, teach and run
- Safety: guards, enabling device, safe start
- A handshake between robot and PLC
Levels in the Robotics lab
Part of the Robotics lab
Teach a robot arm a pick and place job and prove its handshake with the PLC.
Feeds these internships: PLC Programming, Commissioning and Maintenance.
