Flow loop and control valve

Level 5 of 8 in the Process lab: a free process control exercise at Intermediate level, which takes about 45 minutes. Stroke-test a control valve, find its fail position, set the controller action to match and tune the fast flow loop.

Start this level

Free · no download · about 45 minutes. Your work is saved on this device. Updated 18 Oct 2026.

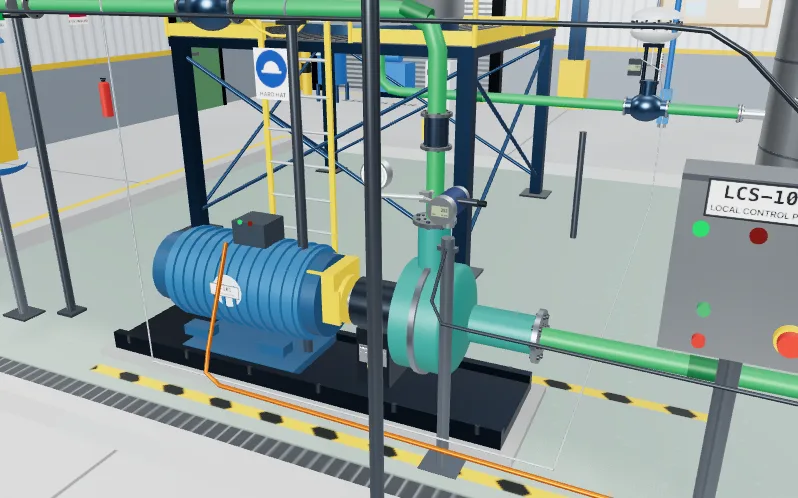

3D view of the Flow loop and control valve level in the Process lab — Flow loop and control valve

The brief

Industry: Paper
Task code: PRC-05
Difficulty: Intermediate
Type of work: Tuning

Stroke-test a control valve, find its fail position, set the controller action to match and tune the fast flow loop.
