Process lab · Level 3 of 8

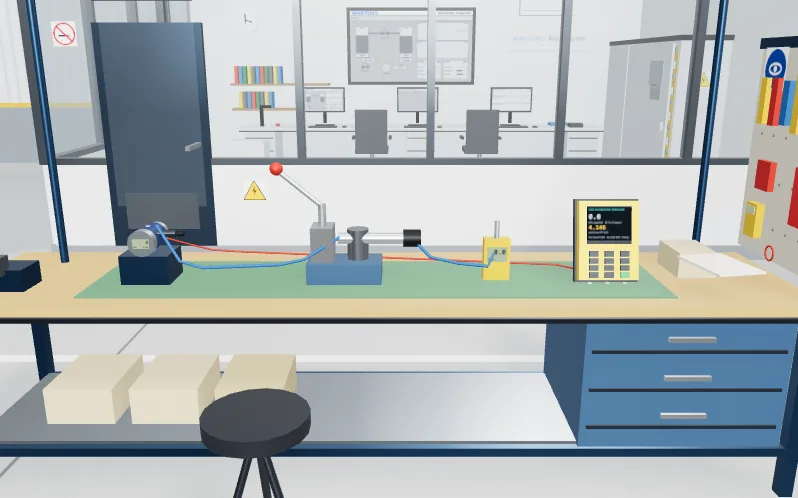

Calibrate a pressure transmitter
Level 3 of 8 in the Process lab: a free process control exercise at Intermediate level, which takes about 40 minutes. Run a five-point as-found calibration up and down, adjust zero and span, prove it as-left and issue the certificate.
Free · no download · about 40 minutes. Your work is saved on this device. Updated 18 Oct 2026.
The brief
- Industry
- Water
- Task code
- PRC-03
- Difficulty
- Intermediate
- Type of work
- Calibration
Run a five-point as-found calibration up and down, adjust zero and span, prove it as-left and issue the certificate.
What the test checks
The acceptance test marks the skills this level practises.
In this lab
- P&ID, loop check and calibration bench
- PID tuning with step tests
- Alarms and an operator screen
Levels in the Process lab
Part of the Process lab
Read the P&ID, check and calibrate instruments, tune loops and run a plant from a control room.
Feeds these internships: Instrumentation and Process Control, Commissioning and Maintenance, SCADA and HMI, PLC Programming.
